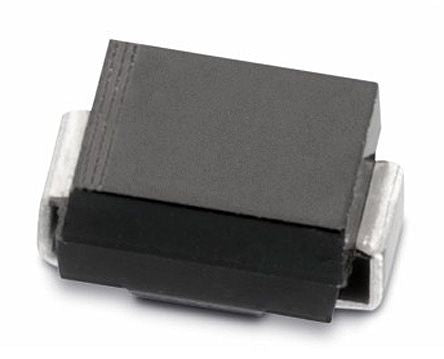

Wurth Elektronik 824520500, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA [824520500]; 162-3912
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 65.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.32mm |
| Dimensions | 4.32 x 3.62 x 2.3mm |
| Maximum Reverse Leakage Current | 800µA |
| Test Current | 10mA |
| Height | 2.3mm |
| Width | 3.62mm |
