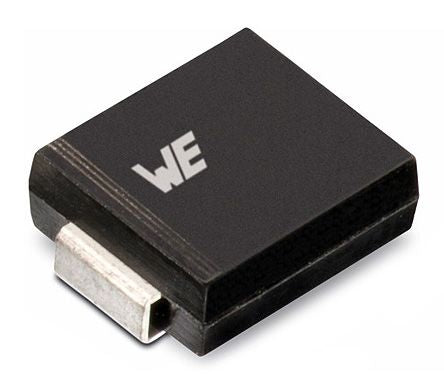

Wurth Elektronik 824540101, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB [824540101]; 162-3968
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 17V |
| Minimum Breakdown Voltage | 11.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 88.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 6.86mm |
| Dimensions | 6.86 x 5.9 x 2.34mm |
| Maximum Reverse Leakage Current | 5µA |
| Width | 5.9mm |
| Height | 2.34mm |
| Test Current | 1mA |
