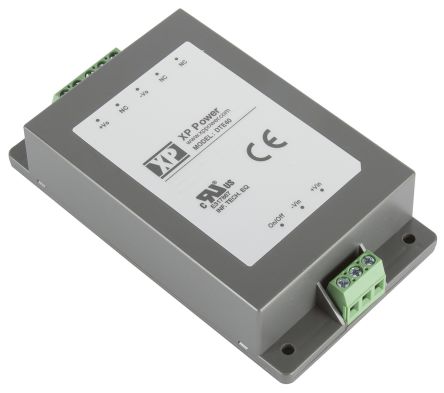

XP Power DTE40 40W Isolated DC-DC Converter Chassis Mount, Voltage in 9 → 36 V dc, Voltage out 48V dc [DTE4024S48]; 122-6625
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 48V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 2.5kV dc |
| Power Rating | 40W |
| Output Current | 835mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Efficiency | 0.89 |
| Package | Encapsulated |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +85°C |
| Depth | 25.6mm |
| Width | 63.8mm |
| Length | 112mm |
| Series | DTE40 |
| Standards Met | CE Certified, CULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1 |
