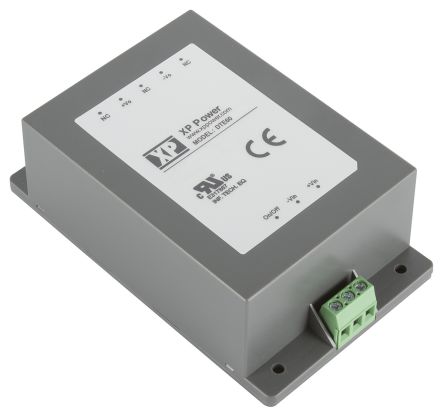

XP Power DTE60 60W Isolated DC-DC Converter Chassis Mount, Voltage in 9 → 36 V dc, Voltage out 12V dc [DTE6024S12]; 122-6632
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 2.5kV dc |
| Power Rating | 60W |
| Output Current | 5A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Efficiency | 0.91 |
| Package | Encapsulated |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Width | 67.8mm |
| Depth | 38mm |
| Length | 112mm |
| Standards Met | CE Certified, CULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1 |
| Series | DTE60 |
