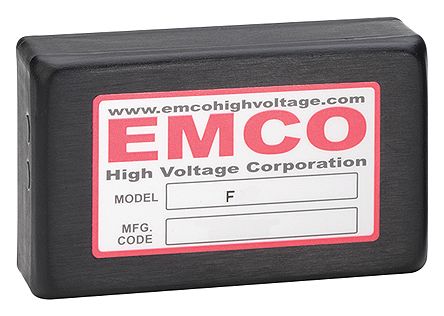

XP Power F50 DC to High Voltage DC Converter 0 → 15 V dc 2mA 5kV 10W [F50]; 136-0472
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5kV |
| Input Voltage Range | 0 → 15 V dc |
| Power Rating | 10W |
| Output Current | 2mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Minimum Temperature | -10°C |
| Maximum Temperature | +70°C |
| Series | F Series |
| Power Signal Conversion Type | DC-DC |
| Length | 71.1mm |
| MTBF | >810000h |
| Ripple And Noise | <1 (Ripple)% |
| Depth | 21.6mm |
| Protection Features | Short Circuit Protection |
| Weight | 142g |
| Maximum Input Current | <1.5 (Full Load) A, <150 (No Load) mA |
| Width | 43.2mm |
