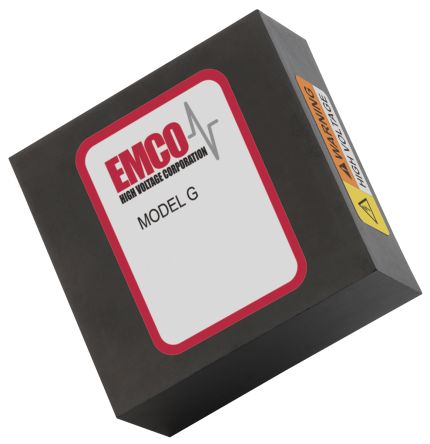

XP Power G30 DC to High Voltage DC Converter 0 → 12 V dc 500μA 3kV 1.5W [G30]; 136-0455
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3kV |
| Input Voltage Range | 0 → 12 V dc |
| Power Rating | 1.5W |
| Output Current | 500µA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Minimum Temperature | -10°C |
| Maximum Temperature | +60°C |
| Load Regulation | <10% |
| Length | 38.1mm |
| Series | G Series |
| Power Signal Conversion Type | DC-DC |
| MTBF | >2290000h |
| Ripple And Noise | <2 (Ripple)% |
| Weight | 43g |
| Protection Features | Short Circuit Protection |
| Maximum Input Current | <125 (No Load) mA, <300 (Full Load) mA |
| Width | 38.1mm |
| Depth | 16mm |
