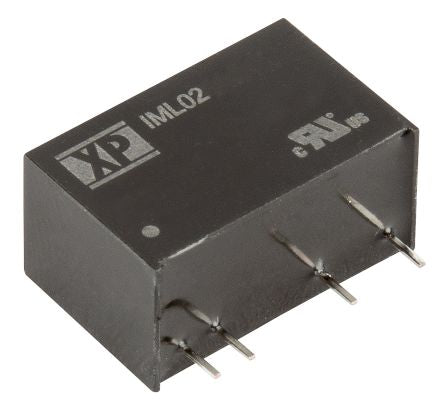

XP Power IML02 2W Isolated DC-DC Converter Through Hole, Voltage in 13.5 → 16.5 V dc, Voltage out ±5V dc Medical [IML0215D05]; 124-0975
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 13.5 → 16.5 V dc |
| Input Voltage Nominal | 15 V dc |
| Isolation Voltage | 4kV ac |
| Power Rating | 2W |
| Output Current | ±200mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Medical Approved | Yes |
| Package | SIP 7 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.1 |
| Maximum Temperature | +85°C |
| Standards Met | CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1 |
| Depth | 12.5mm |
| Series | IML02 |
| Length | 19.5mm |
| Width | 9.8mm |
