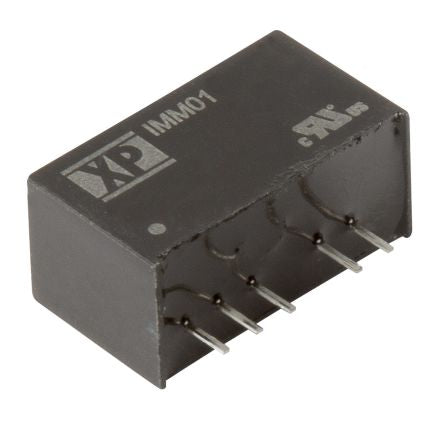

XP Power IMM01 1W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±15V dc Medical [IMM0112D15]; 123-1159
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV ac |
| Power Rating | 1W |
| Output Current | ±33mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Medical Approved | Yes |
| Railway Approved | No |
| Package | SIP 7 |
| Load Regulation | Maximum of 2% |
| Minimum Temperature | -20°C |
| Maximum Temperature | +100°C |
| Length | 19.5mm |
| Series | IMM01 |
| Standards Met | ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1, EN55011, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60601-1, IEC60601-1-2, MIL-HDBK-217F |
| Width | 9.2mm |
| Depth | 11.1mm |
