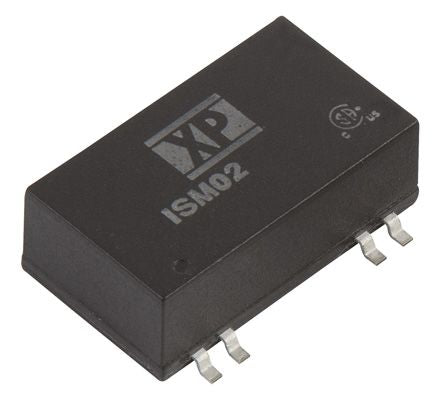

XP Power ISM02 2W Isolated DC-DC Converter Surface Mount, Voltage in 21.6 → 26.4 V dc, Voltage out 15V dc [ISM0224S15]; 167-2088
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 2W |
| Output Current | 133mA |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 4kV ac |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.66 |
| Medical Approved | Yes |
| Railway Approved | No |
| Package | SMD |
| Minimum Temperature | -25°C |
| Load Regulation | Maximum of 10% |
| Maximum Temperature | +105°C |
| Width | 13.7mm |
| Series | ISM02 |
| Standards Met | ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1, IEC60950-1, MIL-HDBK-217F, UL 94 V-0, UL/cUL 60950-1 |
| Depth | 8.75mm |
| Length | 24mm |
