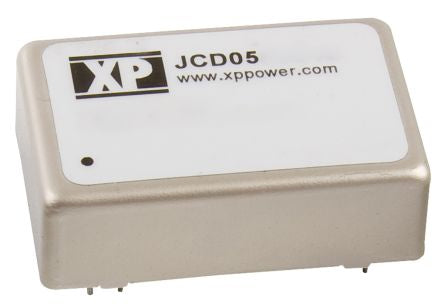

XP Power JCD 5W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out ±5V dc [JCD0505D05]; 161-8925
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±5V dc |
| Output Voltage Adjustment Range | ±4.95 V dc, ±5.05 V dc |
| Input Voltage Range | 4.5 → 9 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 5W |
| Output Current | ±500mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Package | DIP 24 |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Series | JCD |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F |
| Depth | 10.4mm |
| Width | 20.32mm |
| Length | 31.8mm |
