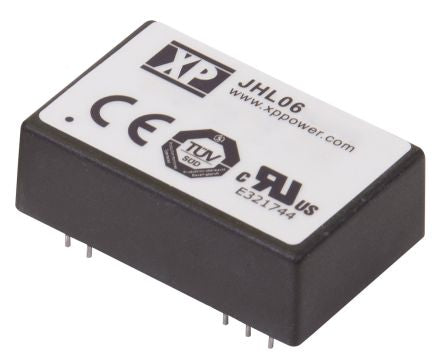

XP Power JHL06 6W Isolated DC-DC Converter Through Hole, Voltage in 20 → 30 V dc, Voltage out 5V dc Medical [JHL0624S05]; 122-6233
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 20 → 30 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 4kV ac |
| Power Rating | 6W |
| Output Current | 1.2A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Railway Approved | No |
| Package | DIP 24 |
| Minimum Temperature | -20°C |
| Load Regulation | ±1% |
| Maximum Temperature | +80°C |
| Depth | 10.2mm |
| Standards Met | ANSI/AAMI ES60601-1, CSA-22.2 No.60601-1:2008, EN55011, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60601-1, IEC60601-1-2, MIL-HDBK-217F |
| Width | 20.32mm |
| Series | JHL06 |
| Length | 31.75mm |
