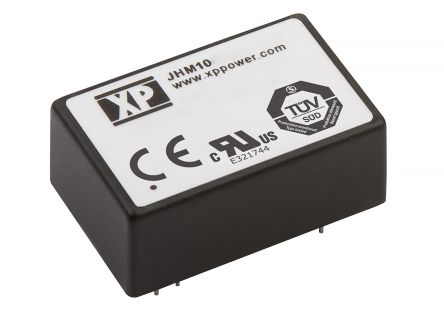

XP Power JHM 10W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc Medical [JHM1012D12]; 161-9028
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 4kV ac |
| Power Rating | 10W |
| Output Current | ±420mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Medical Approved | Yes |
| Railway Approved | No |
| Package | DIP 24 |
| Load Regulation | ±1 (10 → 100% Load) %, ±2 (0 → 10% Load) % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +80°C |
| Width | 20.32mm |
| Depth | 10.4mm |
| Standards Met | ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL |
| Length | 31.75mm |
| Series | JHM |
