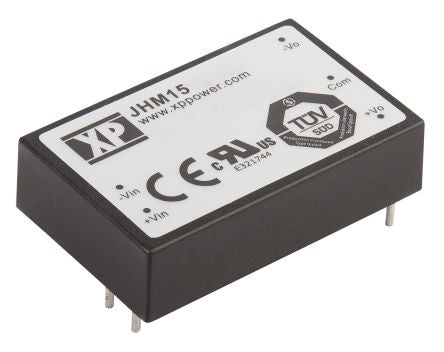

XP Power JHM15 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 5V dc Medical [JHM1512S05]; 161-9033
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 4kV ac |
| Power Rating | 15W |
| Output Current | 3A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Railway Approved | No |
| Package | 1 x 1.6 in |
| Load Regulation | ±1 (10 to 100% Load) %, ±2 (0 to 10% Load) % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +80°C |
| Series | JHM15 |
| Standards Met | ANSI/AAMI ES60601-1, CSA-22.2 No.60601-1:2008, EN 61204-3, EN55011, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60601-1, IEC60601-1-2, MIL-HDBK-217F |
| Length | 40.6mm |
| Width | 25.4mm |
| Depth | 10.2mm |
