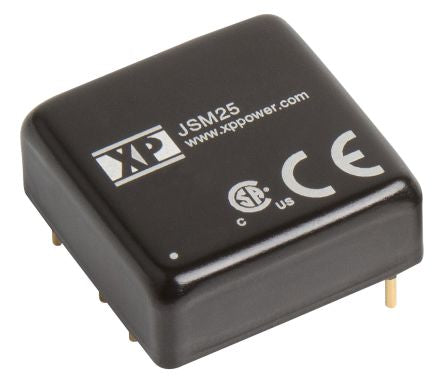

XP Power JSM25 25W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±15V dc [JSM2512D15]; 167-3014
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Output Voltage Adjustment Range | ±14.7 V dc, ±15.3 V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 25W |
| Output Current | ±840mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Package | 1 x 1 in |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Series | JSM25 |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1 |
| Length | 25.4mm |
| Depth | 10.16mm |
| Width | 25.4mm |
