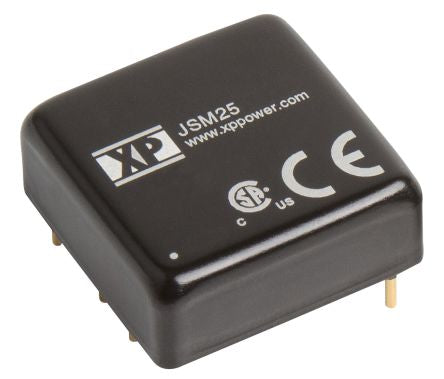

XP Power JSM25 25W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc [JSM2524D12]; 167-3018
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±11.76 V dc, ±12.24 V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 25W |
| Output Current | ±1A |
| Isolation Voltage | 1.5kV dc |
| Input Voltage Nominal | 24 V dc |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Package | 1 x 1 in |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Width | 25.4mm |
| Depth | 10.16mm |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1 |
| Length | 25.4mm |
| Series | JSM25 |
