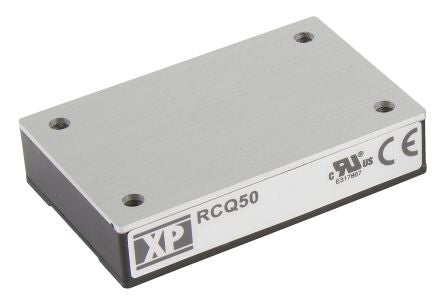

XP Power RCQ50 50W Isolated DC-DC Converter Through Hole, Voltage in 66 → 160 V dc, Voltage out 15V dc Railway [RCQ50110S15]; 167-2367
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 66 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3kV ac |
| Power Rating | 50W |
| Output Current | 3.33A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | Quarter Brick |
| Load Regulation | ±0.3% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Length | 57.9mm |
| Series | RCQ50 |
| Width | 36.8mm |
| Standards Met | CE Certified, CULus Recognized, EMC EN50121-3-2, EN 45545-2, EN50121-3-2, EN50155, EN55022, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC 60950-1, IEC/EN 60068-2-1, IEC/EN 60068-2-2, IEC/EN 60068-2-30, IEC/EN 61373, IEC60571, MIL-HDBK-217F, UL/cUL60950-1 |
| Depth | 12.5mm |
