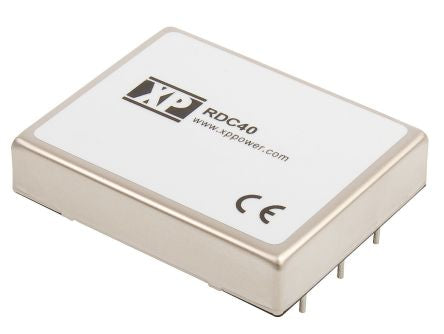

XP Power RDC40 40W Isolated DC-DC Converter Through Hole, Voltage in 36 → 140 V dc, Voltage out 15V dc Railway [RDC4072S15]; 122-4588
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Output Voltage Adjustment Range | -10 → +10% |
| Input Voltage Range | 36 → 140 V dc |
| Input Voltage Nominal | 72 V dc |
| Isolation Voltage | 1.5kV ac |
| Power Rating | 40W |
| Output Current | 2.65A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | 2 x 1.6 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Standards Met | CE Certified, EN50121-3-2, EN50155, EN55011, EN60950-1:2006+A12:2011, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, LVD, MIL-HDBK-217F, TUV |
| Series | RDC40 |
| Depth | 10.16mm |
| Width | 40.6mm |
| Length | 50.8mm |
