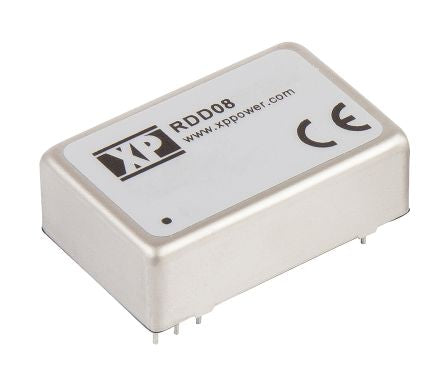

XP Power RDD 8W Isolated DC-DC Converter Through Hole, Voltage in 42 → 176 V dc, Voltage out 12V dc Railway [RDD08110S12]; 167-2277
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 42 → 176 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 8W |
| Output Current | 665mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.84 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | DIP 24 |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Length | 31.75mm |
| Width | 20.32mm |
| Depth | 10.16mm |
| Standards Met | CE Certified, EN 550121-3-2, EN50121-3-2, EN50155, EN50551, EN61000-4-8, MIL-HDBK-217F |
| Series | RDD |
