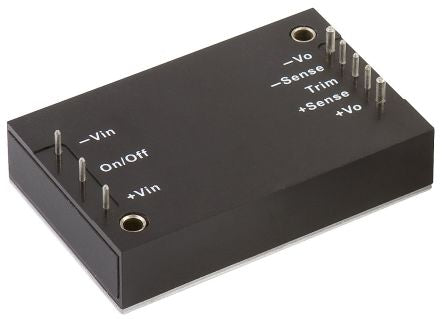

XP Power RDQ 100W Isolated DC-DC Converter Through Hole, Voltage in 66 → 160 V dc, Voltage out 24V dc Railway [RDQ100110S24]; 122-4606
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 66 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 2.25kV dc |
| Power Rating | 100W |
| Output Current | 4.2A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | Quarter Brick |
| Load Regulation | ±0.2% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Standards Met | CE Certified, CULus Recognized, EN 50155, EN 55011, EN 55022, EN 61373, EN50121-3-2, EN60068-2-1, EN60068-2-2, EN60068-2-30, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, UL 60950-1 |
| Series | RDQ |
| Length | 57.9mm |
| Depth | 12.7mm |
| Width | 36.8mm |
