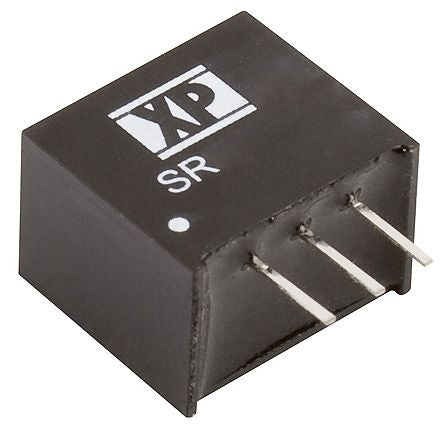

XP Power DC-DC Switching Regulator, 11 → 34V dc Input, 9V dc Output, 500mA [SR05S09]; 167-2768
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 11 → 34V dc |
| Output Voltage | 9V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 4.5W |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.96 |
| MTBF | >4.5Mh |
| Load Regulation | ±0.6% |
| Line Regulation | ±0.5% |
| Ripple And Noise | 60mV Pk-Pk |
| Series | SR |
| Length | 11.68mm |
| Special Features | Pin Compatible with LM78MXX, Wide Input Range |
| Maximum Input Current | 10 (No Load)mA |
| Width | 7.5mm |
| Depth | 10.15mm |
| Protection Features | Short Circuit Protection |
| Switching Frequency Range | 330kHz |
| Weight | 1.8g |
| Rated Output Power | 4.5W |
| Power Signal Conversion Type | DC-DC |
