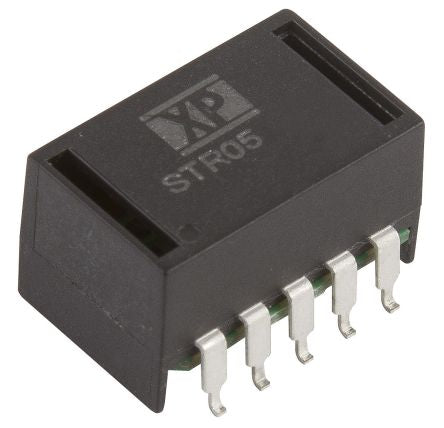

XP Power Switching Regulator, 11 → 32V dc Input, 9V dc Output, 500mA [STR05S09]; 161-8868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 11 → 32V dc |
| Output Voltage | 9V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 4.5W |
| Mounting Type | Surface Mount |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Efficiency | 0.92 |
| MTBF | 2Mh |
| Load Regulation | ±0.4% |
| Line Regulation | ±0.2% |
| Ripple And Noise | 40mV Pk-Pk |
| Width | 9.6mm |
| Depth | 8.8mm |
| Output Voltage Adjustment Range | 4.5-12.6V |
| Weight | 1.7g |
| Protection Features | Short Circuit Protection |
| Switching Frequency Range | 280 → 380kHz |
| Maximum Input Current | 5mA |
| Rated Output Power | 4.5W |
| Power Signal Conversion Type | DC-DC |
| Length | 15.3mm |
| Special Features | Wide Input Range |
| Series | STR |
