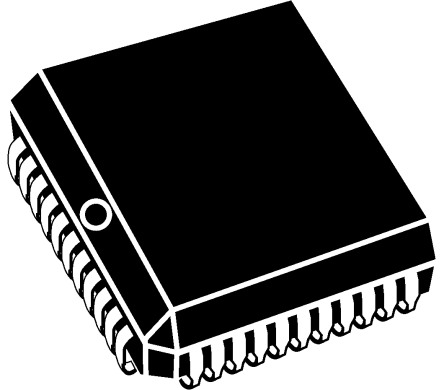

Zilog Z8F6421VN020SG, 8bit Z8 Microcontroller, 20MHz, 64 kB Flash, 44-Pin PLCC [Z8F6421VN020SG]; 625-9337
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Z8 Encore! XP |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | Z8 |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Dimensions | 16.66 x 16.66 x 3.86mm |
| Timers | 3 x 16 bit |
| Height | 3.86mm |
| Timer Resolution | 16bit |
| Minimum Operating Temperature | 0 °C |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 3 x 16 bit |
| Width | 16.66mm |
| PWM Channels | 3 |
| ADCs | 8 x 10 bit |
| Length | 16.66mm |
| Maximum Operating Temperature | +70 °C |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | CISC |
