SF541310 189-4452

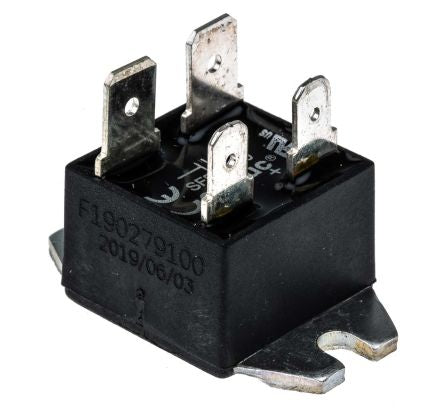

CELDUC Relay: solid state; Ucntrl: 4÷30VDC; 10A; 12÷280VAC; SF; 1-phase [SF541310]

Mã nhà sản xuất
SF541310
Thương hiệu
CELDUC
Mã kho
189-4452
Liên hệ
📩 Liên hệ để có giá tốt: [email protected]

SF5 Series Solid State Relays Medium power, synchronous, solid state relays, fitted using Faston terminals. Volume enables it to be integrated into all interfacing combinations. Low leakage current. High immunity. Zero Voltage Relays Note Temperature can affect current rating; please consult the data sheet for potential derating.

SF5 Series Solid State Relays

Medium power, synchronous, solid state relays, fitted using Faston terminals.

Volume enables it to be integrated into all interfacing combinations.

Low leakage current.

High immunity.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

THÔNG SỐ KỸ THUẬT
Manufacturer Celduc
Manufacturer Part No. SF541310
Maximum Load Current 10A
Mounting Type Panel Mount
Maximum Load Voltage 280V rms
Minimum Load Voltage 12V ac
Minimum Control Voltage 4V dc
Maximum Control Voltage 30V
Switching Type Zero Crossing
Control Voltage Range 4 → 30 V dc
Range SF-SP7-SP8
Minimum Load Current 5mA
Number of Poles 1
Terminal Type Faston
Output Device Triac
Relay Type Single Phase Solid State Relay
Series SF-SP7-SP8
Maximum Turn On Time 10ms
Load Voltage Range 12 → 280 V ac
Dimensions 35.5 x 21 x 15mm
Standards Met CE, cURus
Operating Temperature Range -40 → +90 °C
Length 35.5mm
Off State Leakage Current 3mA
Height 15mm
Maximum Operating Temperature +90°C
Minimum Operating Temperature -40°C
Depth 21mm

Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
