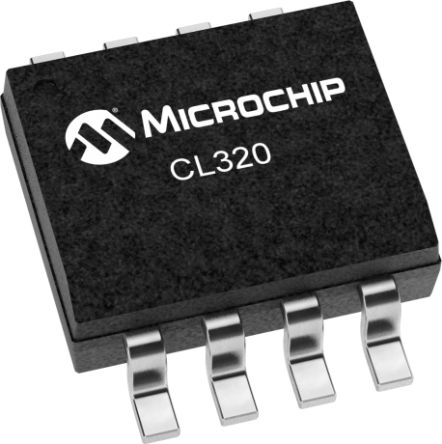

MICROCHIP TECHNOLOGY IC: driver; current regulator,LED driver; SO8; 20mA; 4÷90V; Ch: 3 [CL320SG-G]
The Microchip 3-Channel Linear LED Drivers are designed to drive three strings of LEDs at a constant current of 20 mA, 25 mA and 30 mA, respectively. The drive current is fixed, with a ±6% tolerance over a VOUT range of 4V to 15V. Separate enable pins for each channel allow for PWM dimming, three-step linear dimming or individual disconnection of faulty LED strings. 90V Standoff Voltage Separate Enable Pins for each Channel for PWM Dimming Over temperature Protection
The Microchip 3-Channel Linear LED Drivers are designed to drive three strings of LEDs at a constant current of 20 mA, 25 mA and 30 mA, respectively. The drive current is fixed, with a ±6% tolerance over a VOUT range of 4V to 15V. Separate enable pins for each channel allow for PWM dimming, three-step linear dimming or individual disconnection of faulty LED strings.
90V Standoff Voltage
Separate Enable Pins for each Channel for PWM Dimming
Over temperature Protection
