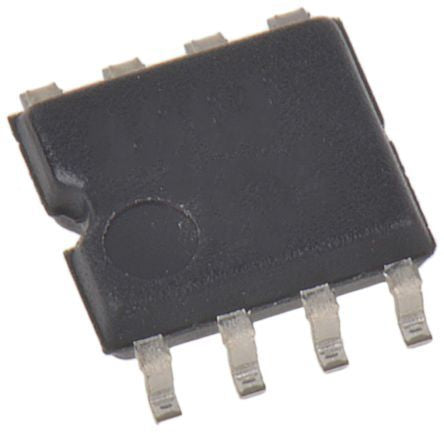

ROHMBM1P107FJ-E2BM1P107FJ-E2 AC-DC Controller, PWM Controller 100 kHz 8-Pin, SOP

Controller Type PWM ControllerInput Voltage Range 8.9 → 26 VMaximum Input Voltage 26 VMaximum Output Current +20mA
Mã nhà sản xuất
BM1P107FJ-E2
Thương hiệu
Quy cách đóng gói
Gói 10 cái
Mã kho
1845309
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Controller Type PWM Controller
Number of Outputs 1
Maximum Switching Frequency 100 kHz
Width 3.9mm
Mounting Type Surface Mount
Package Type SOP
Pin Count 8
Dimensions 4.9 x 3.9 x 1.37mm
Length 4.9mm
Height 1.37mm
Maximum Input Voltage 26 V
Maximum Operating Temperature +85 °C
Maximum Output Current +20mA
Maximum Output Voltage 14.5 V
Output Voltage Range 10.5 → 14.5 V
Minimum Operating Temperature -40 °C
Operating Temperature Range -40 → +85 °C
Output Current Range -20 → +20 mA
Input Voltage Range 8.9 → 26 V
Minimum Output Voltage 10.5 V
Minimum Output Current -20mA
Minimum Input Voltage 8.9 V
