SICKCLV601-1D200Fixed Cable Bar code reader, 5 V dc
Connection Type CableDevice Type Bar Code ReaderMaximum DC Voltage 5VOptical Technology LED
Liên hệ
Sick Bar code reader

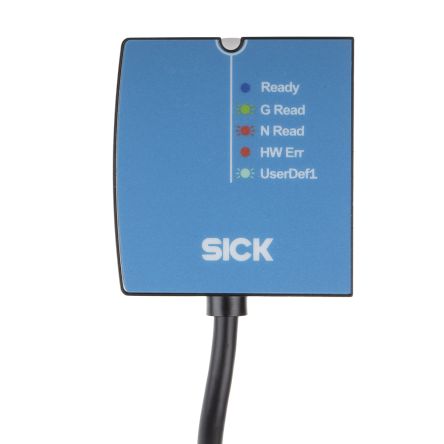

The Sick CLV60x 5VDC 1W bar code reader comes with a centre-exit 2m 1x9-pin male connector. This CMOS line scanner sensor has a high scanning frequency of 750 Hz. This makes it is suitable for fast applications too. It has a PMMA front screen and zinc die-cast light blue, black colour housing.
Features and Benefits
- Compact in dimension 55mmx52mmx20mm
- Configured quickly and easily using the SOPAS ET software
- Multifunctional 1 RGB LED, acoustic (Beeper/buzzer) indicators on case
- Operating temperature ranges between 0°C and 50°C
- Reading distance ranges between 15mm and 70mm
- RS-232 or USB interface to connect to a control
- Side reading field bar code reader
Applications
- Aerospace
- Automotive
- Electronics
- Packaging
Certifications
- CE certified
- EAC
- EN 60068-2-27:2009-05
- EN 60068-2-6:2008-02
- EN 61000-6-2:2005-08
- EN 61000-6-3/A1:2011-03
- EN 62471:2008-09
- IEC 62471:2006-07
- IP40 (DIN 40 050) rated
- VDE 0106/IEC 1010-1
