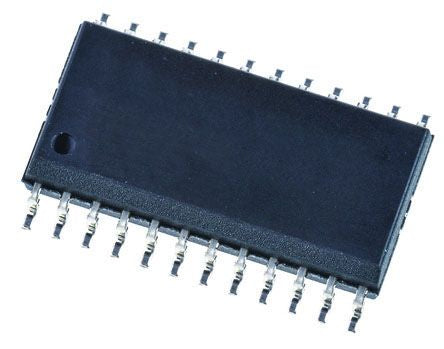

TEXAS INSTRUMENTSSN74CBT3384ADWSN74CBT3384ADW, Bus Switch, 5 x 1:1, 24-Pin SOIC

Configuration 5 x 1:1Logic Family CBTMaximum High Level Output Current -128mAMaximum Low Level Output Current 128mA
Mã nhà sản xuất
SN74CBT3384ADW
Thương hiệu
Quy cách đóng gói
Ống 25 cái
Mã kho
1451247
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Logic Family CBT
Configuration 5 x 1:1
Number of Elements per Chip 2
Number of Inputs per Chip 10
Number of Outputs per Chip 10
Maximum On Resistance 14Ω
Mounting Type Surface Mount
Package Type SOIC
Pin Count 24
Maximum High Level Output Current -128mA
Maximum Low Level Output Current 128mA
Maximum Propagation Delay Time @ Maximum CL 0.35 ns @ 4 V
Dimensions 15.4 x 7.52 x 2.35mm
Length 15.4mm
Height 2.35mm
Maximum Operating Supply Voltage 5.5 V
Maximum Operating Temperature +85 °C
Width 7.52mm
Minimum Operating Supply Voltage 4 V
Minimum Operating Temperature -40 °C
Propagation Delay Test Condition 50pF
