TIME ELECTRONIC10481048 Current Loop Calibrator 70mA

Absolute Maximum Current Measurement 70mABattery Life 20 hBattery Type 9VBest Accuracy ±0.02 %
Mã nhà sản xuất
1048
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4231630
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

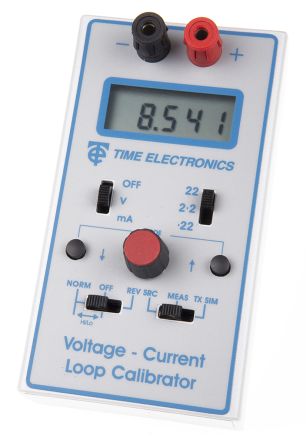

Current Voltage Loop Calibrator 1048

Easy to use current, voltage and loop calibrator

Source & measure in 3 current & 3 volt ranges

Transmitter/simulator sink function

High accuracy 0.02%

A large easy to read 4.5 digit LCD which auto-ranges, 0.005% of range resolution

Output functions include steps, ramps and inching

A ten turn potentiometer controls output adjustment with up/down increment buttons for fine control

Output can be reversed (positive/negative) and zeroed at the flick of a switch

Manual rest of ramp function is also provided for quick restore

Supplied with

letherette carry case

THÔNG SỐ KỸ THUẬT
Absolute Maximum Current Measurement 70mA
Best Accuracy ±0.02 %
Resolution 1 μA
Battery Type 9V
Battery Life 20 h
Power Source Battery
Dimensions 50 x 78 x 142mm
Weight 300g
Height 142mm
Length 50mm
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Model Number p 1048
Width 78mm
