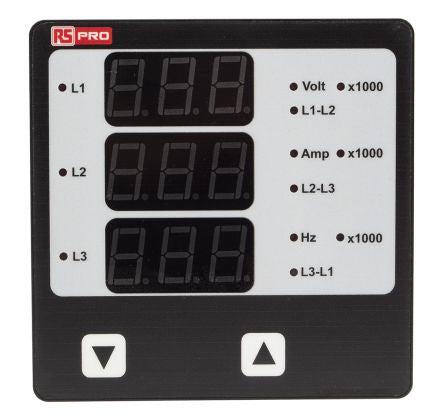

RS PRO LED Digital Panel Multi-Function Meter, 92mm x 92mm; 136-5378
Mã kho: 1365378
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Properties Measured | Current, Frequency, On Hour, RPM, Run Hour, Voltage |
| Display Type | LED |
| Cutout Height | 92mm |
| Cutout Width | 92mm |
| Depth | 55 (Without option)mm |
| Number of Digits | 3 |
| Minimum Temperature | -10°C |
| Maximum Temperature | +55°C |
| Measurement Range | 5 (Current) A, 65 (Frequency) Hz, 500 (AC RMS Input Voltage) V, 500 (Secondary Input Voltage) V, 799 (Primary Input Voltage) kV |
| Meter Type | Digital |
| Minimum Measurement | 1 (Current) A, 45 (Frequency) Hz, 100 (AC RMS Input) V, 100 (Primary) V, 100 (Secondary) V |
| Approvals | IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005 |
| Series | AP05 |
