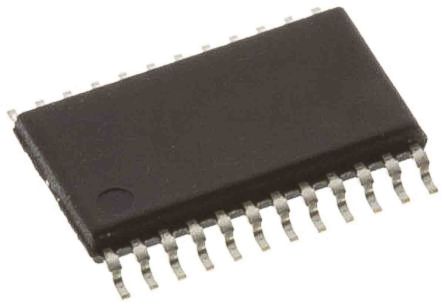

STMicroelectronics ALED1262ZTTR 1924607

STMICROELECTRONICSALED1262ZTTRALED1262ZTTR, LED Display Drivers

Dimming Operation 7-bit PWM local brightness controlDriver Current 6 → 60 mAInput Voltage 5.5 → 38 VCấp bảo vệ IP IP55
Mã nhà sản xuất
ALED1262ZTTR
Thương hiệu
STMICROELECTRONICS
Quy cách đóng gói
Cuộn 2500 cái
Mã kho
1924607
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Designed for automotive applications

12 constant current output channels

19 V current generator rated voltage

Output current: from 6 mA to 60 mA

Current programmable by a single external resistor

7-bit PWM local brightness control

Slow turn-on/off time, gradual output delay and dithered clock for EMI reduction

Error detection for open LEDs

Supply voltage: from 5.5 V to 38 V

Thermal shutdown and overtemperature alert

Standalone and bus-driven mode

Custom configuration by OTP with Redundancy and ECC

400 kHz fast I²C Interface with selectable extended Hamming encoding

Wired-OR error flag connection

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. ALED1262ZTTR
Product Type Display Driver
Output Voltage 19V
Input Voltage 5.5 → 38 V
Sub Type LED Driver
Dimming Operation Global Dimming, Register, 7-bit PWM local brightness control
Terminal Type Solder
IP Rating IP55
LED Voltage 19V
Operating Modes Bus Driven Mode (BDM), Standalone mode (SAM)
Driver Current 6 → 60 mA
Number of Outputs 12
Series ALED1262ZT
Standards/Approvals RoHS
Primary Type 12 Channel LED driver

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
