STMICROELECTRONICSSTEVAL-ILL061V1STEVAL-ILL061V1, LED Evaluation Kits

Featured Device LED1642GWDùng cho High Brightness LED DriverKit Classification Evaluation BoardTên bo STEVAL
Mã nhà sản xuất
STEVAL-ILL061V1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1961804
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

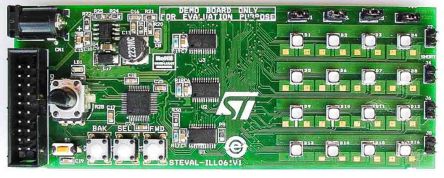

The STEVAL-ILL061V1 is a high brightness RGB LED array driver system evaluation board with local dimming and diagnostics based on LED1642GW independent PWM LED driver controlled through an STM32 microcontroller SPI interface. An ST L7981 DC-DC converter provides the voltages/power for overall functioning of the board.

High brightness 4x4 RGB LED matrix

Complete hardware and software package

Various preconfigured and programmable patterns

Open/short error simulation and real-time detection

6 to 28 V DC polarity-independent power supply

GUI for advanced driver configuration

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STEVAL-ILL061V1
LED Technology LED Driver
Kit Classification Evaluation Board
For Use With High Brightness LED Driver
Featured Device LED1642GW, STM32
Kit Name STEVAL

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
