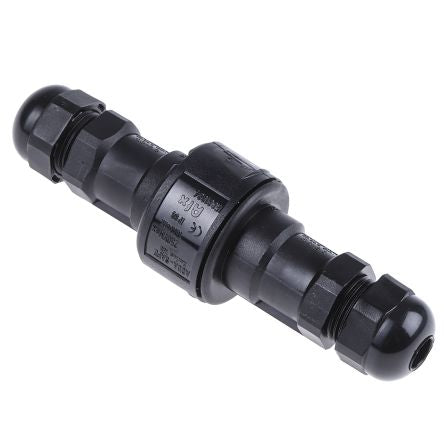

ELKAY ELECTRICAL3 Pole Female, Male Cable Mount Mains Inline Connector,Cable Diameter 5 → 9mm Rated At 16A,250 V ac/dc

Cable Diameter 5 → 9mmDòng định mức 16AĐường kính 37mmĐực / cái Female
Mã nhà sản xuất
Plug, Socket
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4787543
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

ABB Mains Inline Connector, Quick-Release Collar, IP68 Rating - 185-9000

When the job calls for cable connections in harsh environments, choose this mains inline connector from ABB. The assembly includes a plug and socket that mate tightly together inside a protective shell. This lets you link industrial leads while shielding them from common environmental hazards such as knocks and moisture. The unit's IP68 rating means that once mated, it resists all dust and withstands being submerged in up to 1.5m of water for up to 30 minutes. This connector works with cables between 5 and 9mm in diameter, so it's a versatile choice.

Features & Benefits

  • Nitrile rubber seal protects the internal workings by locking moisture out
  • Halogen-free construction means it won't release toxic gases in a fire
  • Stable design of the cable entry points tackles retention issues and prevents twisting
  • Positive keyways make it impossible to assemble the connector incorrectly
  • Outer collar serves as a quick-release mechanism for speedy dismantling

Applications

  • Heavy engineering works
  • Robotics systems
  • Food and beverage industries

How robust is this connector assembly?

As this product is made of rugged polycarbonate and glass-filled nylon, you can expect impressive resistance to impacts and abrasion for a long service life.

THÔNG SỐ KỸ THUẬT
Plug/Socket Plug, Socket
Pole Format 3
Mounting Type Cable Mount
Cable Diameter 5 → 9mm
Current Rating 16A
Voltage Rating 250 V ac/dc
IP Rating IP68
Termination Method Screw Down
Diameter 37mm
Length 140mm
Gender Female, Male
Maximum Cable Diameter 9mm
Minimum Cable Diameter 5mm
