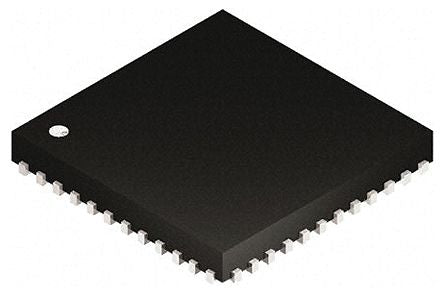

STMICROELECTRONICSSTSPIN32F0ASTSPIN32F0A, BLDC Brushless DC Motor Controller 48-Pin, VFQFPN

Configuration 3 PhaseMaximum Operating Supply Voltage 45VMaximum Output Current 70mAMaximum Supply Voltage 45V
Mã nhà sản xuất
STSPIN32F0A
Thương hiệu
Quy cách đóng gói
Gói 2 cái
Mã kho
1646992
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The STSPIN32F0A is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes. It embeds a triple half-bridge gate driver able to drive power MOSFETs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function. An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components.

Extended operating voltage from 6.7 to 45 V

Three-phase gate drivers

Integrated bootstrap diodes

Cross-conduction prevention

Availability FW bootloader

16 general-purpose I/O ports (GPIO)

5 general-purpose timers

12-bit ADC converter (up to 9 channels)

I2 C, USART and SPI interfaces

3 rail-to-rail operation amplifiers for signal conditioning

Comparator for overcurrent protection with programmable threshold

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STSPIN32F0A
Motor Type BLDC
Configuration 3 Phase
Output Configuration Triple Half Bridge
Maximum Output Current 70mA
Maximum Supply Voltage 45V
Mounting Type Surface Mount
Package Type VFQFPN
Maximum Operating Supply Voltage 45V
Pin Count 48
Minimum Operating Supply Voltage -0.3V
Typical Switching Frequency 200 kHz
Series STSPIN
Maximum Operating Temperature +125°C
Product Width 7.1mm
Product Length 7.1mm
Length 7.1mm
Height 0.95mm
Product Height 0.95mm
Width 7.1mm
Dimensions 7.1 x 7.1 x 0.95mm
Minimum Operating Temperature -40°C
