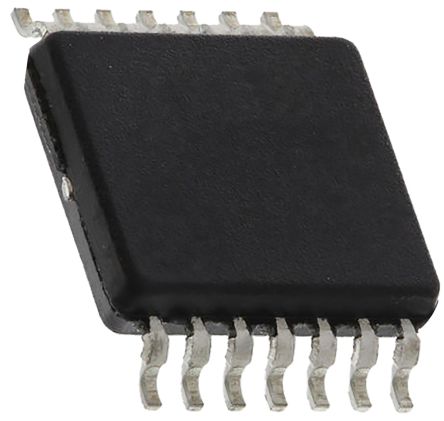

ROHMBD9251FV-E2BD9251FV-E2 ROHM, BD9251FV Proximity Sensor IC Pyroelectric Infrared Sensor, 2.97 → 6 V 14-Pin SSOP-B

Maximum Operating Supply Voltage 6 VMaximum Output Current 200 (Sink) μAMaximum Output Voltage 2.3 VMaximum Supply Current 400 μA
Mã nhà sản xuất
BD9251FV-E2
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Mã kho
1288882
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Sensor Type Pyroelectric Infrared Sensor
Maximum Output Current 30 (Source) μA, 200 (Sink) μA
Maximum Output Voltage 2.3 V
Switching Mode Analogue
Output Type Open Drain
Mounting Type Surface Mount
Package Type SSOP-B
Pin Count 14
Maximum Supply Current 400 μA
Dimensions 5 x 4.4 x 1.05mm
Height 1.05mm
Length 5mm
Minimum Operating Temperature -30 °C
Series BD9251FV
Maximum Operating Temperature +75 °C
Width 4.4mm
Minimum Operating Supply Voltage 2.67 V
Maximum Operating Supply Voltage 6 V
