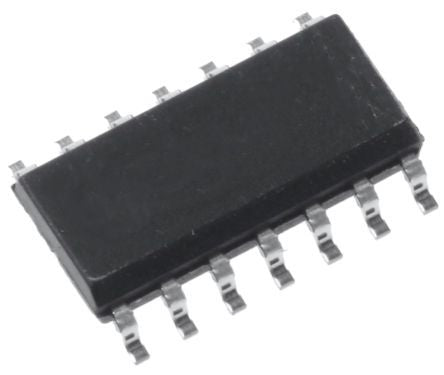

ON SEMICONDUCTORUC2843BDGUC2843BDG, PWM Current Mode Controller, 1 A, 500 kHz, 36 V, 14-Pin SOIC

Control Method CurrentFall Time 150nsMaximum Duty Cycle 0.96Maximum Switching Frequency 500 kHz
Mã nhà sản xuất
UC2843BDG
Thương hiệu
Quy cách đóng gói
Ống 55 cái
Mã kho
1841121
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Number of PWM Outputs 1
Control Method Current
Topology Boost, Flyback
Rise Time 150ns
Fall Time 150ns
Maximum Duty Cycle 0.96
Maximum Switching Frequency 500 kHz
Mounting Type Surface Mount
Package Type SOIC
Pin Count 14
Output Current 1 A
Output Voltage 5.05 V
Minimum Operating Temperature -25 °C
Width 4mm
Length 8.75mm
Maximum Operating Temperature +85 °C
Height 1.5mm
Dimensions 8.75 x 4 x 1.5mm
Typical Operating Supply Voltage 36 V
