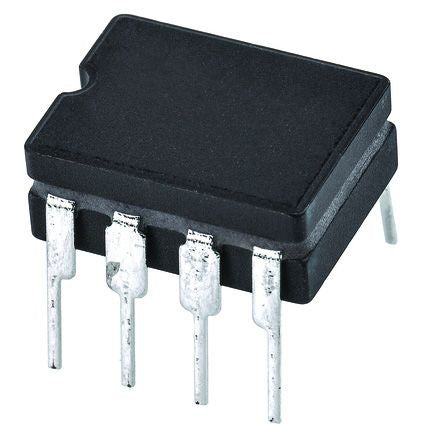

TEXAS INSTRUMENTSUC1843JUC1843J, PWM Current Mode Controller, 1 A, 500 kHz, 2.5 V, 8-Pin CDIP

Control Method CurrentFall Time 150nsMaximum Duty Cycle 1Maximum Switching Frequency 500 kHz
Mã nhà sản xuất
UC1843J
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
7968461
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

PWM Controllers 500kHz, Texas Instruments

THÔNG SỐ KỸ THUẬT
Number of PWM Outputs 1
Control Method Current
Topology Boost, Flyback, Forward
Rise Time 150ns
Fall Time 150ns
Maximum Duty Cycle 1
Maximum Switching Frequency 500 kHz
Mounting Type Through Hole
Package Type CDIP
Pin Count 8
Output Current 1 A
Output Voltage 5.05 V
Minimum Operating Temperature -55 °C
Length 10.16mm
Maximum Operating Temperature +125 °C
Height 4.57mm
Dimensions 10.16 x 7.11 x 4.57mm
Width 7.11mm
Typical Operating Supply Voltage 2.5 V
