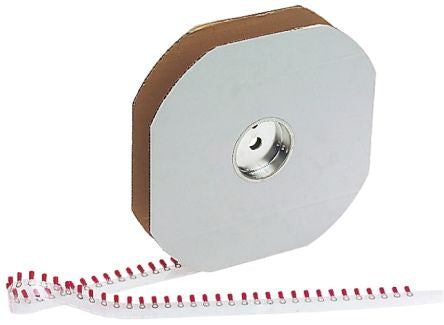

RS PRO 3110 Series Insulated Crimp Ring Terminal, M8 (5/16) Stud Size, 0.5mm² to 1.5mm² Wire Size, Red; 149-271
Mã kho: 149271
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 3110 |
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Inner Ring Diameter | 8.4mm |
| Outer Ring Diameter | 12.6mm |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size AWG | 16AWG |
| Minimum Wire Size AWG | 22AWG |
| Stud Size | M8 (5/16) |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 0.8mm |
| Overall Length | 26.7mm |
