MICROCHIPMCP3424EVMCP3424EV 18-bit ADC Evaluation Board for MCP3424

Converter Type ADCFeatured Device MCP3424Kit Classification Evaluation BoardĐộ phân giải 18-bit
Mã nhà sản xuất
MCP3424EV
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
8252543
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

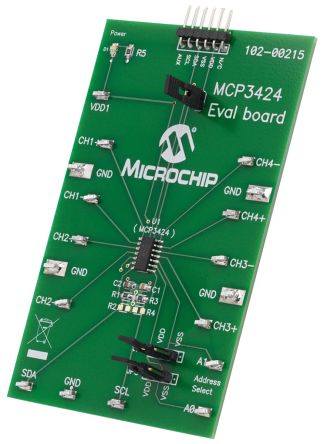

Evaluation Board for 18-bit Multi-Channel ADC, Microchip

Microchips's MCP6424EV evaluation board is a small 18-bit multichannel ADC. This board is designed to convert analogue inputs into digital with an 18-bit resolution. This board is easy to use, with it connecting straight to Microchips popular PICkit. A PCB header allow you to plug straight into the PICkit allowing for fast and easy conversion testing. You can also monitor voltage using the sensor input connectors (CH2 on PCB).

The MCP6424EV also includes test points for SDL, SDA analogue inputs. Connecting an oscilloscope to the test points enables you to examine data communications through the I2C bus line and observe the resulting conversion input.

Features and benefits:

  • 18-bit channel ADC
  • Small form factor allows you take it anywhere
  • Allows connection to your own application to test system functionality too.
  • Low noise and high accuracy
  • 2 LEDs to show the state of the board

Applications:

  • Weighing scales
  • Battery fuel gauges
  • Temperature sensing – RTD, thermistor and thermocouple
  • Bridge sensing – Pressure, force and strain
  • Factory automation equipment

Need the PICkit?

See RS Stock no: 381-554

Analogue to Digital Converters - Microchip

.THÔNG SỐ KỸ THUẬT:
Converter Type ADC
Featured Device MCP3424
Kit Classification Evaluation Board
Resolution 18-bit
