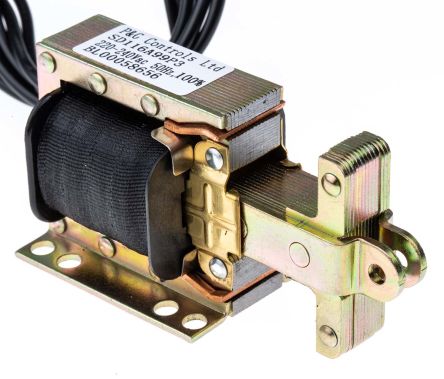

MECHETRONICSSD116A99P3Pull Action AC Laminated Solenoid, 16mm stroke, 9VA, 240 V ac

Action PullClosed Power Continuous 9VADuty Cycle 1Magnetic Force 0.55N
Mã nhà sản xuất
SD116A99P3
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
3583968
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

ac Laminated

High performance pull type ac laminated solenoids in four sizes for medium and heavy duty applications

Three point seating surface and copper shading rings reduce solenoid noise

Available with 24V, 110V and 240V 50Hz continuously rated coils

Moisture resistant impregnated coils are provided on all variants

Dielectric strength 1500V

THÔNG SỐ KỸ THUẬT
Maximum Stroke 16mm
Action Pull
Duty Cycle 1
Magnetic Force 0.55N
Closed Power Continuous 9VA
Supply Voltage 240 V ac
Length 41.2mm
Width 33.8mm
Depth 36.7mm
Weight 230g
Dimensions 41.2 x 33.8 x 36.7 mm
