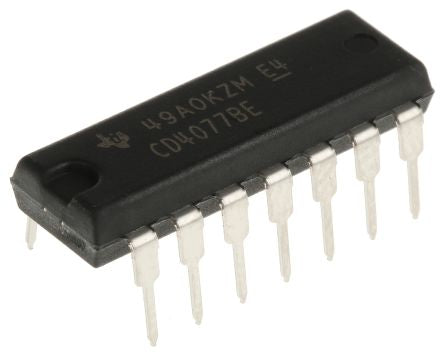

TEXAS INSTRUMENTSCD4077BECD4077BE, Quad 2-Input XNOR Logic Gate, 3 → 18 V, 14-Pin PDIP

Logic Family 4000Logic Function XNORMaximum High Level Output Current -4.2mAMaximum Low Level Output Current 4.2mA
Mã nhà sản xuất
CD4077BE
Thương hiệu
Quy cách đóng gói
15 cái (băng liên tục)
Mã kho
6629666
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

4000 Series Logic Gates, Texas Instruments

Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family

4000 CMOS Logic Family, Texas Instruments

CMOS Family devices

Wide operating voltage range: 3 to 18V

THÔNG SỐ KỸ THUẬT
Manufacturer Texas Instruments
Manufacturer Part No. CD4077BE
Logic Function XNOR
Mounting Type Through Hole
Number of Elements 4
Number of Inputs per Gate 2
Schmitt Trigger Input No
Package Type PDIP
Pin Count 14
Logic Family 4000
Maximum Operating Supply Voltage 18V
Maximum High Level Output Current -4.2mA
Maximum Propagation Delay Time @ Maximum CL 100 ns @ 15 V, 130 ns @ 10 V, 280 ns @ 5 V
Minimum Operating Supply Voltage 3V
Maximum Low Level Output Current 4.2mA
Length 19.3mm
Width 6.35mm
Minimum Operating Temperature -55°C
Propagation Delay Test Condition 50pF
Height 4.57mm
Maximum Operating Temperature +125°C
Dimensions 19.3 x 6.35 x 4.57mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
