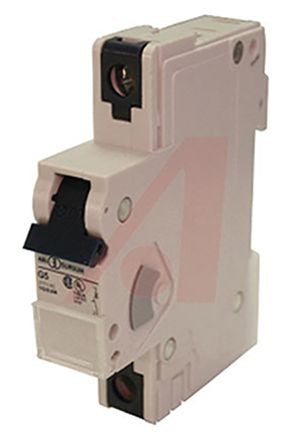

Altech 3A 1 Pole Thermal Magnetic Circuit Breaker, 42V dc V-EA [1E3UM]; 898-1812
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 3A |
| Number of Poles | 1 |
| Voltage Rating | 42V dc |
| Series | V-EA |
| Overall Depth | 74.7mm |
| Overall Dimensions | 93.3 x 17.5 x 74.7mm |
| Overall Length | 93.3mm |
| Circuit Breaker Type | MCCB |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Break Time | Time Delay |
| Special Features | IP20 Terminal Protection |
| Rated DC Voltage | 42V |
| Tripping Mechanism | Thermal-Magnetic |
| Tripping Characteristics | Type E |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Reset Actuator Type | Toggle Switch |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, High Efficiency Motors, UL508 Application, Which have Exceedingly High Inrush Current |
| Mounting Style | DIN Rail Mount |
