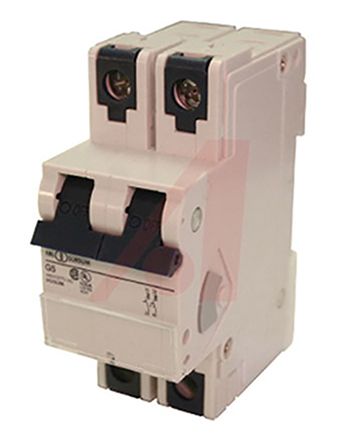

Altech 20A 2 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 480Y/277 V V-EA [2C20UM]; 899-3070
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 20A |
| Number of Poles | 2 |
| Series | V-EA |
| Rated DC Voltage | 80V |
| Circuit Breaker Type | MCCB |
| Reset Actuator Type | Handle |
| Overall Dimensions | 93.3 x 35 x 74.7mm |
| Mounting Style | DIN Rail Mount |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Appliances, Business Equipment, Control Circuit Applications, Lighting, Low Inrush Motors, UL508 Application, Wiring Protection |
| Overall Length | 93.3mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Overall Depth | 74.7mm |
| Rated AC Voltage | 480Y/277V |
| Tripping Characteristics | Type C |
| Break Time | Time Delay |
| Special Features | IP20 Terminal Protection |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
