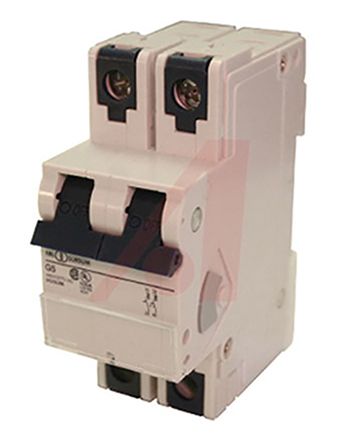

Altech 2A 2 Pole Thermal Magnetic Circuit Breaker V-EA [2C2UM]; 899-3092
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 2A |
| Number of Poles | 2 |
| Series | V-EA |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Mounting Style | DIN Rail Mount |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Break Time | Time Delay |
| Special Features | IP20 Terminal Protection |
| Rated AC Voltage | 480Y/277V |
| Rated DC Voltage | 80V |
| Circuit Breaker Type | MCCB |
| Reset Actuator Type | Handle |
| Overall Dimensions | 93.3 x 35 x 74.7mm |
| Overall Depth | 74.7mm |
| Tripping Mechanism | Thermal-Magnetic |
| Tripping Characteristics | Type C |
| Overall Length | 93.3mm |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Appliances, Business Equipment, Control Circuit Applications, Lighting, Low Inrush Motors, UL508 Application, Wiring Protection |
