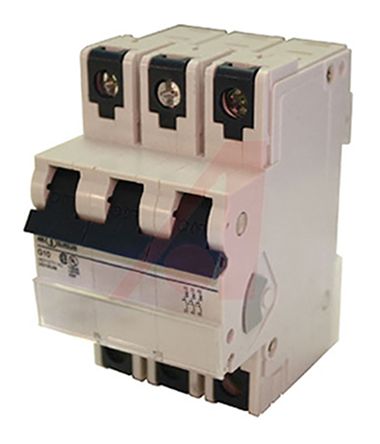

Altech 10A 3 Pole Thermal Magnetic Circuit Breaker, 480Y/277V V-EA [3B10UM]; 899-4348
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Number of Poles | 3 |
| Voltage Rating | 480Y/277V |
| Series | V-EA |
| Overall Length | 93.3mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal-Magnetic |
| Overall Depth | 74.7mm |
| Mounting Style | DIN Rail Mount |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Appliances, Business Equipment, Control Circuits, Electronic Applications, Lighting, Motors, UL508 Applications, Wiring Protection |
| Break Time | Time Delay |
| Special Features | IP20 Terminal Protection |
| Rated AC Voltage | 480Y/277V |
| Reset Actuator Type | Handle |
| Overall Dimensions | 93.3 x 52.5 x 74.7mm |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Circuit Breaker Type | MCCB |
