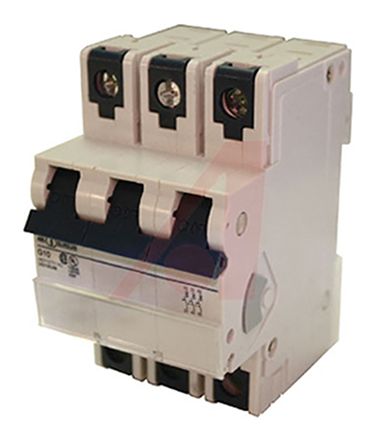

Altech 40A 3 Pole Thermal Magnetic Circuit Breaker, 480Y/277V V-EA [3D40UM]; 899-5007
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 40A |
| Number of Poles | 3 |
| Voltage Rating | 480Y/277V |
| Series | V-EA |
| Overall Dimensions | 93.3 x 52.5 x 74.7mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Overall Length | 93.3mm |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Heaters and Reactive Loads, High Inrush Motors, Power Supplies, Transformers, UL508 Application |
| Mounting Style | DIN Rail Mount |
| Overall Depth | 74.7mm |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal-Magnetic |
| Rated AC Voltage | 480Y/277V |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Special Features | IP20 Terminal Protection |
| Break Time | Time Delay |
| Circuit Breaker Type | MCCB |
| Reset Actuator Type | Handle |
