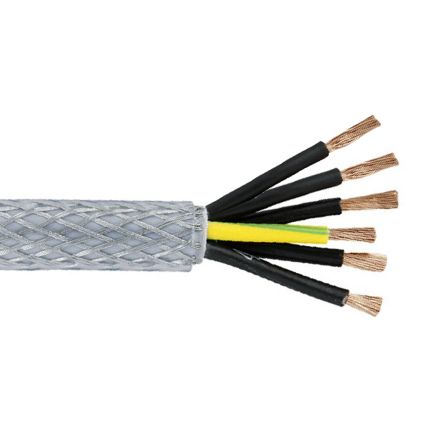

BELDENSYSC07.0050Belden SY 7 Core SY Control Cable 1 mm², 50m, Screened

Cỡ dây AWG 17 AWGBedding Material PVCVật liệu lõi CopperConductor Resistance 19.5 Ω/km

Mã nhà sản xuất

SYSC07.0050

Thương hiệu

Quy cách đóng gói

Cuộn 50 mét

Mã kho

2441677

Liên hệ

THÔNG SỐ KỸ THUẬT
Number of Cores	7
Cross Sectional Area	1 mm²
Outer Diameter	11.53mm
Current Rating	10 A
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+70°C
Voltage Rating	300/500 V
Core Strands	32/0.2 mm
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Transparent
Earth Cable	Yes
Conductor Resistance	19.5 Ω/km
American Wire Gauge	17 AWG
Screened/Unscreened	Screened
Screen Type	Galvanised Steel
Insulation Material	PVC
Length	50m
Minimum Bend Radius	10 x D
Oil Resistant	No
Series	Belden SY
Bedding Material	PVC
Conductor Material	Copper
