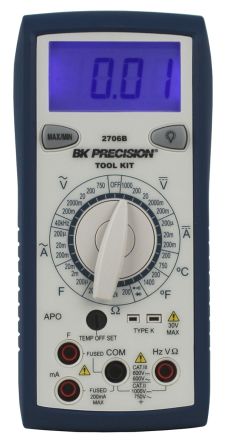

BK PRECISIONBK2706BManual Ranging Tool Kit DMM with Tempera

Absolute Maximum AC Current Measurement 200mA acAbsolute Maximum AC Voltage Measurement 750V acAbsolute Maximum Capacitance Measurement 20mFAbsolute Maximum DC Current Measurement 200mA dc

Mã nhà sản xuất

BK2706B

Thương hiệu

BK PRECISION

Quy cách đóng gói

1 cái

Mã kho

1924579

Liên hệ

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

THÔNG SỐ KỸ THUẬT
Multimeter Type	Handheld
Absolute Maximum AC Current Measurement	200mA ac
Absolute Maximum DC Current Measurement	200mA dc
Absolute Maximum Resistance Measurement	20MΩ
Absolute Maximum AC Voltage Measurement	750V ac
Absolute Maximum DC Voltage Measurement	1000V dc
Absolute Maximum Temperature Measurement	+750 °C, +1400 °F
Absolute Maximum Capacitance Measurement	20mF
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Maximum Frequency	500Hz
Display Type	LCD
Model Number p	BK2706B
DC Current Measurement Resolution	0.1µA dc
AC Current Measurement Resolution	0.1µA ac
DC Voltage Measurement Resolution	0.1mV dc
Resistance Measurement Resolution	100mΩ
AC Voltage Measurement Resolution	0.1mV ac
Capacitance Measurement Resolution	0.1µF
Safety Category Voltage	600 V, 750 V, 1000 V
Best AC Current Accuracy	±1.5% + 5 Digits
Width	42.5mm
Length	78mm
Dimensions	78 x 42.5 x 165mm
Best DC Voltage Accuracy	±0.5% + 1 Digits
Best AC Voltage Accuracy	±2% + 5 Digits
Best Capacitance Measurement Accuracy	±4% +10 Digits
Minimum Operating Temperature	0°C
Best DC Current Accuracy	±1% + 1 Digits
Safety Category Level	CAT II, CAT III
Weight	285g
Height	165mm
Battery Life	150 h
Maximum Operating Temperature	+50°C
Best Resistance Measurement Accuracy	±2% + 4 Digits
Battery Type	9V
