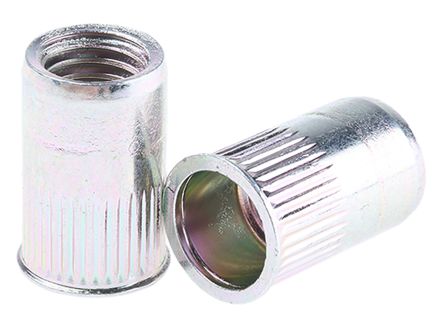

BÖLLHOFF34367100235Plain, M10 Steel Threaded Insert, 14mm diameter 13mm Depth 21mm

Body End OpenBề mặt PlainLỗ bắt vít 13mmFlange Diameter 14mm

Mã nhà sản xuất

34367100235

Thương hiệu

BÖLLHOFF

Quy cách đóng gói

Lô 100 cái

Mã kho

4257626

Liên hệ

📩 Liên hệ để có giá tốt: [email protected] 📄 Datasheet (PDF)

Böllhoff 34367100235 (mã đặt hàng 343 67 100 235) – đai ốc tán rive dòng RIVKLE của Böllhoff (Đức). Cỡ ren: M10. Vật liệu: Steel.

RIVKLE là đai ốc tán rive (đai ốc rive mù) và bu lông tán rive, tạo ren chịu lực trên tấm mỏng, ống, profile khi chỉ tiếp cận được một phía.

Thông số theo catalogue chính hãng Böllhoff "RIVKLE – Blind rivet nuts and studs" (trang 19). Báo giá theo số lượng và thời gian giao hàng, vui lòng liên hệ Chánh Vinh.

Cùng dòng sản phẩm: Böllhoff RIVKLE Standard Blind Rivet Nuts Steel (220 mã)

Các mã dưới đây cùng dòng Böllhoff RIVKLE Standard Blind Rivet Nuts Steel, chỉ khác nhau ở các cột thông số trong bảng. Bấm mã để xem trang chi tiết.

Mã nhà sản xuất	Body End	Dimension B (mm)	Dimension L (mm)	Setting Stroke S (mm)	Shank
23301030010	Open	7.5	8.3	S=2.1-e	Plain
23301030015	Open	7.5	8.7	S=3.2-e	Plain
23301030030	Open	7.5	9.7	S=4.2-e	Plain
23301030045	Open	7.5	11.2	S=5.8-e	Plain
23301030060	Open	7.4	12.9	S=7.2-e	Plain
23301040010	Open	9.0	9.7	S=2.6-e	Plain
23301040020	Open	9.0	10.2	S=3.6-e	Plain
23301040040	Open	9.0	11.8	S=5.6-e 5.6	Plain
23301040060	Open	9.0	13.8	S=7.5-e	Plain
23301050030	Open	10.0	13.75	S=5.0-e	Plain
23301050055	Open	10.0	16.7	S=7.5-e	Plain
23301050080	Open	10.0	19.8	S=9.7-e 9.1	Plain
23301060030	Open	13.0	15.8	S=5.2-e	Plain
23301060055	Open	13.0	18.7	S=7.9-e 9.3	Plain
23301060080	Open	13.0	21.7	S=10.2-e	Plain
23301080030	Open	16.0	17.8	S=5.7-e	Plain
23301080055	Open	16.0	20.8	S=8.2-e	Plain
23301080080	Open	16.0	23.8	S=10.6-e 11.7	Plain
23301080105	Open	16.0	26.8	S=13.5-e	Plain
23301100035	Open	19.0	22.75	S=6.5-e	Plain
23301100060	Open	19.0	25.75	S=9.0-e	Plain
23301100085	Open	19.0	27.75	S=11.5-e	Plain
23301100110	Open	19.0	31.8	S=14.0-e	Plain
23301120040	Open	23.0	26.7	S=7.7-e	Plain
23301120070	Open	23.0	29.7	S=10.7-e	Plain
23301120100	Open	23.0	34.8	S=13.7-e	Plain
23301140600	Open	24.0	35.5	S=9.8-e	Plain
23307030100	Open	7.0	8.8	S=2.0-e	Knurled
23307030175	Open	7.0	9.6	S=2.8-e	Knurled
23307030250	Open	7.0	10.4	S=3.4-e	Knurled
23307030325	Open	7.0	11.2	S=4.1-e	Knurled
23307040230	Open	9.0	11.0	S=4.3-e	Knurled
23307040325	Open	8.0	11.6	S=4.6-e	Knurled
23307050040	Open	10.0	14.7	S=6.0-e 8.0	Knurled
23307050230	Open	10.0	12.75	S=4.7-e	Knurled
23307060230	Open	13.0	14.3	S=5.0-e	Knurled
23307060255	Open	13.0	16.9	S=7.5-e	Knurled
23307080230	Open	16.0	17.7	S=5.5-e	Knurled
23307080255	Open	16.0	20.4	S=8.1-e	Knurled
23307100235	Open	19.0	21.8	S=6.1-e	Knurled
23307100450	Open	16.0	24.0	S=7.4-e	Knurled
23307100600	Open	16.0	25.6	S=8.9-e	Knurled
23311030015	Open	6.6	8.3	S=2.8-e	Plain
23311030030	Open	6.6	8.8	S=4.3-e	Plain
23311030045	Open	6.6	10.3	S=4.9-e	Plain
23311040020	Open	6.6	9.8 7.2 1.0 - 2.0	S=4.9-e	Plain
23311040030	Open	7.8	10.4	S=4.7-e	Plain
23311040050	Open	7.8	11.8	S=6.6-e	Plain
23311040070	Open	8.0	13.8	S=8.4-e	Plain
23311050040	Open	8.0	13.7 9.2 1.5 - 4.0	S=6.5-e 8.0	Plain
23311050065	Open	9.6	16.7	S=8.1e	Plain
23311050090	Open	9.6	19.8	S=10.7-e 9.0	Plain
23311060040	Open	11.3	15.7	S=6.2-e	Plain
23311060065	Open	11.3	20.3	S=8.7-e	Plain
23311060090	Open	11.7	21.8	S=10.4-e	Plain
23311080040	Open	13.1	17.8	S=7.0-e	Plain
23311080065	Open	13.1	20.8	S=9.5-e	Plain
23311080090	Open	13.1	23.75	S=12.0-e	Plain
23311100040	Open	15.1	21.8	S=8.4-e	Plain
23311100065	Open	15.1	24.75	S=8.4-e	Plain
23311100090	Open	15.5	28.0	S=11.5-e	Plain
23311120045	Open	19.0	25.9	S=8.2-e	Plain
23311120075	Open	19.0	29.0	S=9.7-e	Plain
23311120105	Open	19.0	31.8	S=13.7-e 18.0	Plain
23317030175	Open	6.6	8.8	S=2.8-e	Knurled
23317030250	Open	7.0	9.6	S=3.5-e	Knurled
23317030325	Open	7.0	10.4	S=4.3-e	Knurled
23317040175	Open	8.0	9.2	S=4.3-e	Knurled
23317040250	Open	8.0	10.0	S=3.6-e	Knurled
23317040325	Open	8.0	10.8	S=4.3-e	Knurled
23317050200	Open	8.5	11.6	S=3.8-e	Knurled
23317050300	Open	9.0	12.7	S=3.8-e	Knurled
23317050400	Open	9.0	13.8	S=5.2-e	Knurled
23317050500	Open	9.0	14.9	S=6.3-e	Knurled
23317060300	Open	10.6	15.0	S=5.0-e	Knurled
23317060450	Open	10.6	16.6	S=6.5-e	Knurled
23317060600	Open	10.6	18.2	S=8.0-e	Knurled
23317060750	Open	11.0	19.8	S=9.4-e	Knurled
23317080300	Open	12.6	16.5	S=6.0-e	Knurled
23317080450	Open	12.6	18.1 13.6 3.00 - 4.50	S=7.5-e	Knurled
23317080600	Open	14.0	19.7	S=8.6-e	Knurled
23317100300	Open	14.0	20.4 15.0 1.50 - 3.00	S=8.6-e	Knurled
23317100450	Open	16.0	22.0	S=7.3-e	Knurled
23317100600	Open	16.0	23.6	S=8.9-e	Knurled
23321030030	Closed	7.5	14.3	S=4.1-e	Plain
23321040020	Closed	9.0	15.25	S=5.2-e	Plain
23321040040	Closed	9.0	16.75	S=5.6-e	Plain
23321040060	Closed	9.0	18.8	S=7.6-e	Plain
23321050030	Closed	10.0	19.7	S=5.0-e	Plain
23321050055	Closed	10.0	22.7	S=7.5-e	Plain
23321050080	Closed	10.0	25.7	S=9.6-e	Plain
23321060030	Closed	13.0	22.7	S=4.9-e	Plain
23321060055	Closed	13.0	25.7	S=7.7-e	Plain
23321060080	Closed	13.0	28.7	S=10.2-e	Plain
23321080030	Closed	16.0	25.7	S=5.7-e	Plain
23321080055	Closed	16.0	28.7	S=8.2-e	Plain
23321080080	Closed	16.0	31.7	S=10.7-e	Plain
23321080105	Closed	16.0	34.8	S=12.9-e	Plain
23321100035	Closed	19.0	32.7	S=6.5-e	Plain
23321100060	Closed	19.0	35.8	S=8.4-e	Plain
23321100085	Closed	19.0	38.8	S=11.2-e	Plain
23321120070	Closed	23.0	41.8	S=10.4-e	Plain
23327040175	Closed	8.0	15.0	S=3.0-e	Knurled
23327040250	Closed	8.0	15.8	S=3.5-e	Knurled
23327040325	Closed	8.0	16.6	S=4.6-e	Knurled
23327050100	Closed	9.0	17.6	S=2.0-e	Knurled
23327050200	Closed	9.0	18.7	S=3.1-e	Knurled
23327050300	Closed	9.0	19.8	S=4.2-e	Knurled
23327050400	Closed	9.0	21.0	S=5.3-e	Knurled
23327060030	Closed	13.0	21.5	S=4.5-e	Knurled
23327060450	Closed	11.0	25.2	S=5.3-e	Knurled
23327080350	Closed	14.0	26.5	S=5.5-e	Knurled
23327080500	Closed	14.0	27.8	S=7.6-e	Knurled
23327100300	Closed	16.0	32.3	S=6.0-e	Knurled
23331030015	Closed	6.6	13.5	S=2.8-e	Plain
23331030030	Closed	6.6	14.2	S=4.3-e	Plain
23331040020	Closed	7.5	15.8	S=2.8-e	Plain
23331040030	Closed	7.5	16.7 7.8 2.0 - 3.0	S=4.7-e 10.1	Plain
23331040050	Closed	8.0	18.2	S=6.3-e	Plain
23331040070	Closed	8.0	20.2	S=8.4-e 10.3	Plain
23331050040	Closed	9.2	21.3	S=6.5-e 14.0	Plain
23331060040	Closed	11.3	22.7	S=6.2-e	Plain
23331060065	Closed	11.3	27.3	S=8.7-e	Plain
23331060090	Closed	11.3	28.8 11.7 6.5 - 9.0	S=10.5-e 19.4	Plain
23331080040	Closed	13.1	25.7	S=7.0-e	Plain
23331080065	Closed	13.1	28.8	S=7.0-e	Plain
23331080090	Closed	13.5	31.8	S=11.3-e	Plain
23331100040	Closed	15.5	31.8	S=6.3-e 25.4	Plain
23331100065	Closed	15.5	34.0	S=8.9-e	Plain
23331100090	Closed	15.5	38.0	S=12.3-e	Plain
23331120045	Closed	19.0	37.8	S=7.2-e	Plain
23331120075	Closed	19.0	40.8	S=10.4e	Plain
23331120105	Closed	19.0	43.8	S=13.4-e	Plain
23337040175	Closed	8.0	14.2	S=2.8-e	Knurled
23337040250	Closed	8.0	15.0	S=3.6-e	Knurled
23337040325	Closed	8.0	15.8	S=4.7-e	Knurled
23337050200	Closed	8.5	17.7	S=3.0-e	Knurled
23337050300	Closed	9.0	18.8	S=4.1-e	Knurled
23337050500	Closed	9.0	21.0	S=4.1-e	Knurled
23337060300	Closed	11.0	22.0	S=4.6-e	Knurled
23337060450	Closed	11.0	23.6	S=6.2-e	Knurled
23337060600	Closed	11.0	25.2	S=7.8-e	Knurled
23337060750	Closed	11.0	26.8	S=9.4-e	Knurled
23337080300	Closed	12.6	24.8	S=6.0-e	Knurled
23337080450	Closed	14.0	26.4	S=7.0-e	Knurled
23337080600	Closed	14.0	28.0	S=8.6-e	Knurled
23337080750	Closed	14.0	29.6	S=10.2-e	Knurled
23337100300	Closed	15.0	30.3	S=4.3-e	Knurled
23337100450	Closed	16.0	31.9	S=5.3-e	Knurled
23337100600	Closed	16.0	33.5	S=8.9-e	Knurled
23341040020	Open	9.0	9.8	S=3.5-e	Hexagonal
23341040230	Open	9.0	11.0	S=4.3-e	Semi-hexagonal
23341050045	Open	10.0	14.3	S=6.6-e	Hexagonal
23341060055	Open	12.9	18.7	S=7.5-e	Hexagonal
23341060230	Open	13.0	14.25	S=5.0-e	Semi-hexagonal
23341080055	Open	16.0	20.75	S=8.5-e	Hexagonal
23341100060	Open	19.0	25.45	S=8.7-e	Hexagonal
23351040020	Closed	9.0	14.8	S=4.0-e	Hexagonal
23351050030	Closed	10.0	19.7	S=5.0-e	Hexagonal
23351060030	Closed	12.9	22.8	S=5.2-e	Hexagonal
23351080030	Closed	16.0	25.8	S=5.5-e	Hexagonal
23351080055	Closed	16.0	28.7	S=8.3-e	Hexagonal
23351100035	Closed	19.0 1.0 - 3.5 13.0 S=6.0-e 25.0 2.0	32.75	S=8.3-e	Hexagonal
34301030150	Open	5.2	8.4	S=2.8-e	Plain
34301050150	Open	7.6	11.25	S=4.5-e	Plain
34301080450	Open	11.5	16.6	S=7.5-e	Plain
34321040020	Open	6.9	10.3	S=3.0-e	Semi-hexagonal
34321060030	Open	10.6	14.35	S=4.8-e	Semi-hexagonal
34341030025	Open	5.0	10.25	S=3.8-e	Hexagonal
34341040030	Open	6.5	10.8	S=4.5-e	Hexagonal
34341040055	Open	6.5	13.5	S=7.2-e	Hexagonal
34341040230	Open	6.7	10.7	S=4.5-e	Semi-hexagonal
34341050055	Open	7.85	16.5	S=7.2-e	Hexagonal
34341060060	Open	9.95	19.25	S=8.5-e	Hexagonal
34341060230	Open	9.8	13.75	S=5.3-e	Semi-hexagonal
34341080060	Open	11.75	20.8	S=8.5-e	Hexagonal
34341100060	Open	14.1	25.0	S=8.6-e	Hexagonal
34341120040	Open	17.6	24.8	S=7.8-e	Hexagonal
34341120080	Open	17.6	27.7	S=13.5-e	Hexagonal
34351040030	Closed	6.5	17.8	S=4.5-e	Hexagonal
34351060030	Closed	9.95	23.2	S=5.8-e	Hexagonal
34351080030	Closed	11.75	28.3	S=5.8-e	Hexagonal
34351080060	Closed	11.75	30.5 11.75 3.5 - 6.0	S=8.5-e 22.0	Hexagonal
34351100060	Closed	14.1	35.05	S=8.2-e	Hexagonal
34367030020	Open	5.7	9.0	S=3.6-e	Knurled
34367030030	Open	5.75	9.8	S=3.6-e	Knurled
34367040040	Open	6.6	11.9	S=5.6-e	Knurled
34367040230	Open	6.6	10.7	S=4.2-e	Knurled
34367050040	Open	7.6	13.8	S=5.8-e	Knurled
34367050230	Open	8.0	12.75	S=5.3-e	Knurled
34367060040	Open	10.0	16.25	S=6.5-e	Knurled
34367060060	Open	9.6	16.9	S=8.2-e	Knurled
34367060230	Open	10.0	13.8	S=5.1-e	Knurled
34367080045	Open	11.8	18.9	S=6.7-e	Knurled
34367080060	Open	11.8	20.5	S=8.3-e	Knurled
34367080230	Open	12.0 0.5 - 3.0	17.25	S=6.0-e 11.1	Knurled
34367100045	Open	13.8	21.9	S=7.5-e	Knurled
34367100060	Open	13.8	23.5	S=9.1-e	Knurled
34367100235 đang xem	Open	14.0	20.75	S=6.5-e	Knurled
34367120045	Open	17.0	25.8	S=7.5-e	Knurled
34367120060	Open	17.0	27.4	S=9.1-e	Knurled
34377030015	Closed	5.8	12.6	S=2.0-e	Knurled
34377030030	Closed	5.8	14.2	S=3.6-e	Knurled
34377040030	Closed	6.7	17.7	S=4.9-e	Knurled
34377040040	Closed	6.6	16.9	S=5.7-e	Knurled
34377050030	Closed	8.0	19.85	S=5.3-e	Knurled
34377050040	Closed	7.6	19.8	S=6.0-e	Knurled
34377060031	Closed	10.0	21.3	S=5.0-e	Knurled
34377060045	Closed	9.6	20.3	S=6.6-e	Knurled
34377060060	Closed	9.6	21.9	S=7.3-e	Knurled
34377080030	Closed	11.8	23.3	S=4.8-e	Knurled
34377080040	Closed	12.0	26.3	S=7.4-e	Knurled
34377080045	Closed	11.8	24.9	S=6.7-e	Knurled
34377080060	Closed	11.8	26.5	S=8.3-e	Knurled
34377100030	Closed	13.8	28.3	S=5.5-e	Knurled
34377100045	Closed	13.8	29.9	S=7.1-e	Knurled
34377100060	Closed	13.8	31.5	S=8.7-e	Knurled
34377120030	Closed	16.8	33.2	S=11.5-e	Knurled
34377120045	Closed	17.0	34.8	S=7.9-e	Knurled
34377120060	Closed	17.0	36.4	S=9.6-e	Knurled

Manufacturer	Böllhoff
Manufacturer Part No.	34367100235
Catalogue Order No.	343 67 100 235
Series	RIVKLE
Type	Blind Rivet Nut
Product Range	RIVKLE Standard Blind Rivet Nuts
Material	Steel
Head Style	Thin head
Shank	Knurled
Body End	Open
Thread Size	M10
Dimension L (mm)	20.75
Dimension B (mm)	14.0
Grip Range e (mm)	0.7 - 3.5
Dimension Ø (mm)	13.0
Setting Stroke S (mm)	S=6.5-e
Dimension L2 (mm)	14.0
Max. Clamping Range E (mm)	0.5
