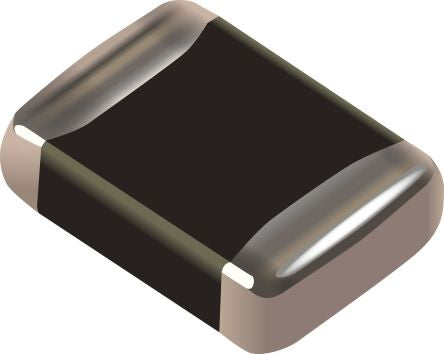

BOURNSAV17K1812801NIR1AV Series Varistor 3.38nF 5A, Clamping 44V, Varistor 27V, 1812

Điện dung 3.38nFClamping Current 5AClamping Voltage 44VEnergy 0.3J
Mã nhà sản xuất
AV17K1812801NIR1
Thương hiệu
Quy cách đóng gói
On a Tape of 10
Mã kho
2098088
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Bourns Electronics AV Series varistors offer excellent transient energy distribution. AV varistors require significantly less space and pad area than silicon TVS diodes, offering greater circuit board layout flexibility for the designer.

Non-plastic coating for better flammability rating

Broad range of current and energy handling

capabilities

THÔNG SỐ KỸ THUẬT
Manufacturer Bourns
Manufacturer Part No. AV17K1812801NIR1
Varistor Voltage 27V
Maximum AC Voltage Rating 17V ac
Maximum DC Voltage Rating 20V dc
Clamping Voltage 44V
Clamping Current 5A
Energy 0.3J
Material Metal
Series AV
Maximum Surge Current 2000A
Capacitance 3.38nF
Length 4.7mm
Thickness 1.3mm
Package/Case 1812

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
