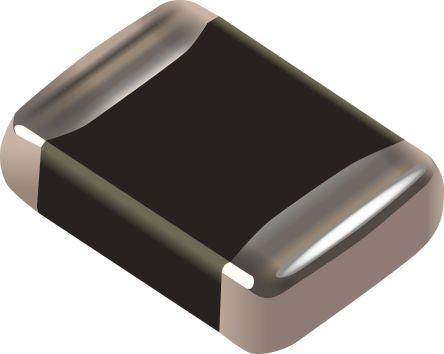

BOURNSAV20K1210401NIR1AV Series Varistor 1.65nF 2.5A, Clamping 54V, Varistor 22V, 1210

Điện dung 1.65nFClamping Current 2.5AClamping Voltage 54VEnergy 0.3J
Mã nhà sản xuất
AV20K1210401NIR1
Thương hiệu
Quy cách đóng gói
100 cái (băng liên tục)
Mã kho
2098095
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Bourns Electronics AV Series varistors offer excellent transient energy distribution. AV varistors require significantly less space and pad area than silicon TVS diodes, offering greater circuit board layout flexibility for the designer.

Non-plastic coating for better flammability rating

Broad range of current and energy handling

capabilities

THÔNG SỐ KỸ THUẬT
Manufacturer Bourns
Manufacturer Part No. AV20K1210401NIR1
Varistor Voltage 22V
Maximum AC Voltage Rating 20V ac
Maximum DC Voltage Rating 26V dc
Clamping Voltage 54V
Clamping Current 2.5A
Energy 0.3J
Material Metal
Series AV
Maximum Surge Current 2000A
Capacitance 1.65nF
Length 3.2mm
Thickness 1.3mm
Package/Case 1210

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
